On most wood-framed homes, T1-11 is the structural sheathing holding the wall together against wind. That changes how you need to approach the siding repair and replacement.
Replacing T1-11 siding takes six steps – remove the old trim, take off the damaged panel, inspect the wall framing behind it, seal the new panel before installing it, hang and nail the new panel correctly, then caulk and paint.
This guide walks through the full process, plus the framing repair rules that matter most for Palm Bay, Melbourne, and Grant Valkaria homes, where humidity and wind-load code requirements both come into play.
T1-11’s Dual Role: Siding and Structural Sheathing
T1-11 is a textured plywood panel that does two jobs at once: it’s the visible siding, and in most wood-framed construction, it’s also the sheathing that keeps the wall from racking – leaning or twisting – under wind pressure. Replacing a full panel or doing a belly-band repair is straightforward on its own. The part that takes real care is what’s directly behind it: the wall studs. That dual role is exactly why this repair takes more care than swapping out a piece of trim.
Why Siding Cuts Can Violate Code
Wall studs are engineered to handle two kinds of load: vertical load (the weight of the roof and floors above) and lateral load (wind pushing against the side of the house). Because T1-11 serves as both siding and structural sheathing, it’s the main component keeping the wall from racking sideways under that wind pressure, which is exactly why cutting into it carelessly is a code issue.
Depth control is key. When you’re cutting out a rotten section of T1-11, set your circular saw blade depth to exactly the thickness of the siding – usually ½” or ⅝”. Go any deeper and you’re cutting into the framing behind it.
The danger of nicking a stud. If the blade cuts even ¼ inch into the face of a 2×4 stud while you’re cutting horizontally, it drastically reduces that stud’s strength. Under the International Residential Code (IRC), horizontal notches in exterior load-bearing studs are strictly limited – and in many cases banned outright without engineer-approved reinforcement.
That’s not a technicality specific to older codebooks, either. Palm Bay, Melbourne, and Grant Valkaria all sit within a wind zone under the Florida Building Code where wall assemblies are expected to resist real hurricane-force lateral loads. A wall that’s been quietly weakened by a bad cut behind the siding isn’t going to show up as a problem until a storm actually tests it.
How to Fix a Notched or Rotted Stud (Sistering)
If a previous repair cut into a stud, or you uncover one that’s rotted at the bottom, you need to repair the framing before nailing up new siding. The standard, code-compliant fix, following IRC stud-to-stud connection and fastening guidance, is called sistering:
- Sister the stud. Cut a new, identical piece of 2×4 framing lumber, at least 3 to 4 feet long, or spanning the full height if the rot runs that far, and clamp it directly alongside the damaged stud.
- Fasten it securely. Secure the new sister stud to the old one with a staggered pattern of 3-inch exterior structural screws or 16d galvanized nails. This transfers the wall’s lateral and vertical load safely into the new wood.
- Restore the nailing surface. Sistering also leaves you a flat, clean, uncut piece of wood to nail your new T1-11 edges into, so you get a tight seal that meets standard nailing schedules.
Keep this in mind as you inspect the frame in Step 3 below; if you find damage, this is the fix before you go any further.
Tools and Materials You’ll Need
- Siding: New T1-11 panels matched to your existing groove spacing (commonly 4″, 8″, or 12″ on center – measure your current panels before ordering)
- Flashing: Z-flashing, if you’re doing a partial (belly-band) repair
- Barrier: House wrap or tar paper to patch or extend the existing moisture barrier
- Finish: Exterior-grade primer, paintable exterior caulk, and paint or solid-color stain
- Fasteners: 8d or 10d hot-dipped galvanized or stainless steel siding nails, or 2-inch exterior deck screws – never drywall or sheetrock screws, which corrode and won’t hold in exterior applications
- Tools: Circular saw, cat’s paw nail puller, pry bar, chalk line, hammer, safety glasses
In Brevard County’s humidity and salt-air exposure, the fastener choice matters more than it would inland. Standard steel nails will rust and streak your siding within a season or two – hot-dipped galvanized or stainless is worth the extra cost.
Step 1: Remove the Old Trim and Locate the Panel Layout
Use a pry bar to gently pull off the vertical corner trim, belly bands, or window trim that overlaps the section you’re replacing.
Before you start pulling panels, look at how they overlap. T1-11 panels have a “lap” edge where one panel rides slightly over the next. Start removing panels from the overlapping side – this minimizes damage to the surrounding wall and makes it much easier to slide the replacement panel into place later.
While you’re at it, decide how much of the wall needs replacing. Two common scenarios:
- Localized bottom rot (the most common issue, usually from sprinkler splash-back or ground moisture) – you can do a partial “belly-band” repair, replacing just the bottom section.
- Widespread damage across the panel or wall – a full 4×8 panel replacement is the better call.
Also check your groove spacing before ordering material. T1-11 comes in different spacings – commonly 4-inch, 8-inch, or 12-inch on center – and mismatched grooves will be obvious once the new panel goes up.
Step 2: Remove the Damaged Siding
Full panel replacement: Use a cat’s paw nail puller to dig out the nails along the studs and seams, then pry the panel off the frame.
Partial (bottom rot) replacement:
- Snap a straight horizontal line with a chalk box above the rotted area.
- Set your circular saw blade depth to exactly the thickness of your T1-11 – usually ½” or ⅝”. This is the step that prevents you from slicing into the studs behind the siding.
- Cut along the line and pry the damaged bottom section free.
Getting the blade depth right here is the single most important detail in this entire process. It’s the difference between a clean siding repair and an accidental structural problem.
Step 3: Inspect the Wood Frame and Fix Any Damaged Studs
With the old siding off, check the exposed wall studs, bottom plate, and rim joist for hidden rot. Replace or reinforce anything that’s structurally weakened before you put new siding over it.
If you find a stud that’s rotted at the bottom, or one that’s been notched or nicked, from this repair or a previous one, don’t just cover it up. Sister it using the process outlined above before you go any further. Skipping this step is the most common way DIY siding repairs turn into code violations, and it’s also the reason many Palm Bay and Melbourne homeowners bring in a Florida state certified contractor once they see stud damage – it’s a structural fix and it’s worth having done right the first time.
While you’re inspecting the wall, take a look at your house wrap or tar paper too. If it’s torn, repair it, or slide a new strip up underneath the remaining barrier by 3 to 4 inches so water sheds outward naturally instead of getting trapped behind the new siding.
Step 4: Pre-Seal the New Panel Before It Goes on the Wall
T1-11 absorbs moisture heavily through its edges – that’s usually where rot starts in the first place. Before you hang the new panel, coat the back, top, bottom, and side edges with exterior primer or water sealer.
This step is easy to skip because it doesn’t feel like it’s doing anything, but it’s what determines whether your new panel lasts 20 years or starts absorbing water at the seams within the first rainy season.
Step 5: Install the New Panel
If you cut a partial panel, slip Z-flashing up behind the upper remaining siding panel so it drapes over the top edge of where the new panel will sit. This is what actually sheds water away from the seam – don’t skip it on a belly-band repair.
Fit the new panel tightly into the framing, and make sure the vertical grooves line up with the surrounding original siding – a misaligned groove pattern is the fastest way to make a repair look like a repair. Leave a ⅛-inch expansion gap between the panel edge and any windows or corners.
Nail it to the studs using this pattern:
- Every 6 inches along the panel edges
- Every 12 inches through the center “field” of the panel
One detail that matters more than it seems: nail only into the flat, raised surfaces of the panel – never into the grooves. Nailing in the grooves punctures the thinnest part of the wood and creates a direct path for water to get in.
Step 6: Caulk and Paint
Run a bead of high-quality, paintable exterior caulk along all vertical seams, corners, and joints where the new panel meets the old siding or trim.
One exception: don’t caulk the horizontal gap directly above the Z-flashing. That gap needs to stay open so water can drain out from behind the panel, and sealing it traps moisture exactly where you don’t want it.
Once the caulk is set, reinstall your corner and perimeter trim, then apply a coat of exterior primer followed by two coats of exterior paint or solid-color stain to match the house. Solid-color stain tends to hold up better on T1-11 than heavy paint, since it penetrates the wood grain instead of forming a film that can eventually peel.
If you’re already repainting, this is also a natural point to consider whether a few more panels on the wall are close behind this one – matching new paint to aging, sun-faded siding gets harder every year you wait.
DIY or Call a Licensed Contractor?
A small belly-band patch on one wall, with no stud damage, is a reasonable weekend project for a homeowner comfortable with a circular saw and a pry bar.
It stops being a DIY project the moment you find rot in the framing, notched studs, or damage spreading across multiple panels. At that point, you’re doing structural repair work on a wall that’s expected to hold up your roof and resist hurricane-force wind – and it’s worth having a licensed, contractor in Brevard county handle it, both for the workmanship and for the paper trail if it ever comes up during an insurance inspection.

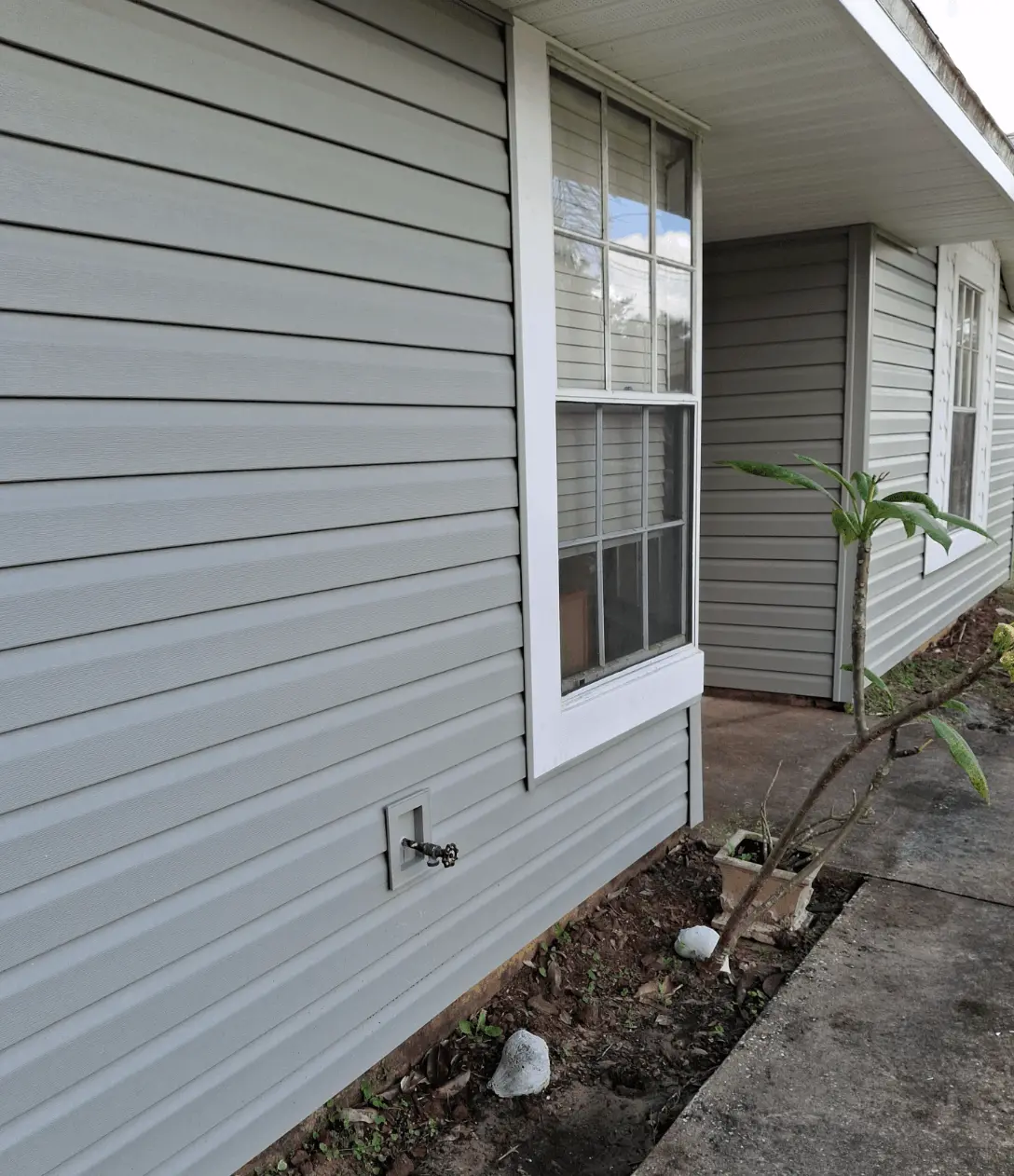

And if the rot you found is significant enough to reconsider your exterior altogether, some Palm Bay and Melbourne homeowners use a siding repair as the moment to switch materials entirely – vinyl siding skips the edge-sealing and repainting maintenance that T1-11 requires, at the cost of losing the structural sheathing function T1-11 provides, so it’s a trade-off worth weighing with a contractor, not deciding on your own mid-repair.
Get It Done Right the First Time
Siding repairs on a T1-11 wall are simple right up until you find something you didn’t expect behind the panel – rot, a bad old cut, or damage that’s spread further than it looked from outside. If that happens, it’s worth getting a second opinion before you start nailing up new siding.
Florida Roofing & Renovations Inc. works on siding, framing, and roofing repairs across Palm Bay, Melbourne, and Grant Valkaria. If you’re not sure whether your damage is a weekend fix or a structural one, reach out for an inspection before you commit to a full panel order.
Frequently Asked Questions
Can you replace just the bottom section of T1-11 siding instead of the whole panel?
Yes – this is called a belly-band repair. Cut a clean horizontal line above the damaged area with your saw blade set to the exact thickness of the siding, add Z-flashing behind the upper panel, and install a new bottom section. It’s a common fix for sprinkler or ground-splash rot that hasn’t spread up the wall.
Is it against code to cut into a wall stud when removing siding?
Notching or cutting into a load-bearing exterior stud is strictly limited under the IRC and can compromise the wall’s ability to resist wind load. The fix isn’t to avoid the cut area – it’s to keep your saw blade depth set to exactly the siding thickness so you never reach the stud in the first place.
How do you fix a stud that’s already rotted or was cut too deep?
Sister it. Attach a new piece of 2×4 lumber alongside the damaged stud with a staggered pattern of structural screws or 16d galvanized nails, spanning at least 3–4 feet past the damage (or the full stud height if the rot is extensive). This restores the wall’s load path and gives you clean wood to nail the new siding into.
What nails should be used for T1-11 siding?
8d or 10d hot-dipped galvanized or stainless steel siding nails, or 2-inch exterior deck screws. Skip drywall or sheetrock screws – they corrode quickly outdoors and won’t hold up to Florida’s humidity.
Why does the top gap above the Z-flashing get left uncaulked?
That gap is a drainage path. Any water that gets behind the siding needs somewhere to escape, and sealing that specific gap traps moisture behind the panel instead of letting it drain out.
